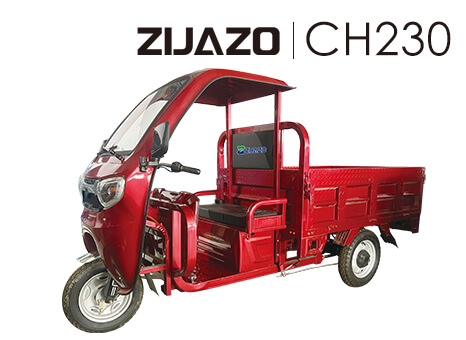

ZIJAZO CH230 Heavy Duty Cabin Tricycle
Heavy Duty Cabin Tricycle

ZIJAZO CH230

Maximum Load Capacity

The CH230 combines the protection of an enclosed cabin with maximum load capacity. Featuring a powerful 2000W motor and 1000kg load capacity, it's the ultimate choice for heavy-duty commercial transport in any weather condition.

2000W Motor
55 km/h Max Speed
1000kg Load Capacity
120km Range

Key Features

Maximum capacity with all-weather protection

1000kg Max Load

Maximum 1000kg load capacity for the heaviest commercial loads and demanding transport tasks.

2000W Power

Powerful 2000W brushless motor delivers excellent torque for heavy loads and inclines.

Enclosed Cabin

Fully enclosed weatherproof cabin protects driver from all weather conditions year-round.

Heavy Duty Frame

Reinforced chassis and frame construction designed for maximum load capacity and durability.

Extended Range

120km range on single charge with high-capacity battery options for all-day operation.

Reinforced Axle

Upgraded rear axle and suspension system handles maximum loads with stability and safety.

Technical Specifications

Detailed specifications for the CH230

Basic Parameters

ModelCH230
Vehicle TypeHeavy Duty Cabin Tricycle
Dimensions (L×W×H)3300×1250×2000 mm
Wheelbase2200 mm
Ground Clearance180 mm
Net Weight320 kg
Load Capacity1000 kg

Power System

Motor Power2000W Brushless DC
Max Speed55 km/h
Range120 km
Battery (Lead-acid)72V 100Ah
Battery (Lithium)72V 80Ah
Charging Time6-8 hours
Climbing Ability25%

Brakes & Tires

Front BrakeDisc Brake
Rear BrakeDrum Brake
Front Tire4.50-12
Rear Tire4.50-12
Rear AxleReinforced Heavy Duty

Cabin Features

Cabin TypeFully Enclosed
Doors2 (Driver + Passenger)
WindowsGlass with Roll-up
Seats2 (Driver + 1 Passenger)
Fan/VentilationStandard
