Floor-Mounted DC Fast Charging

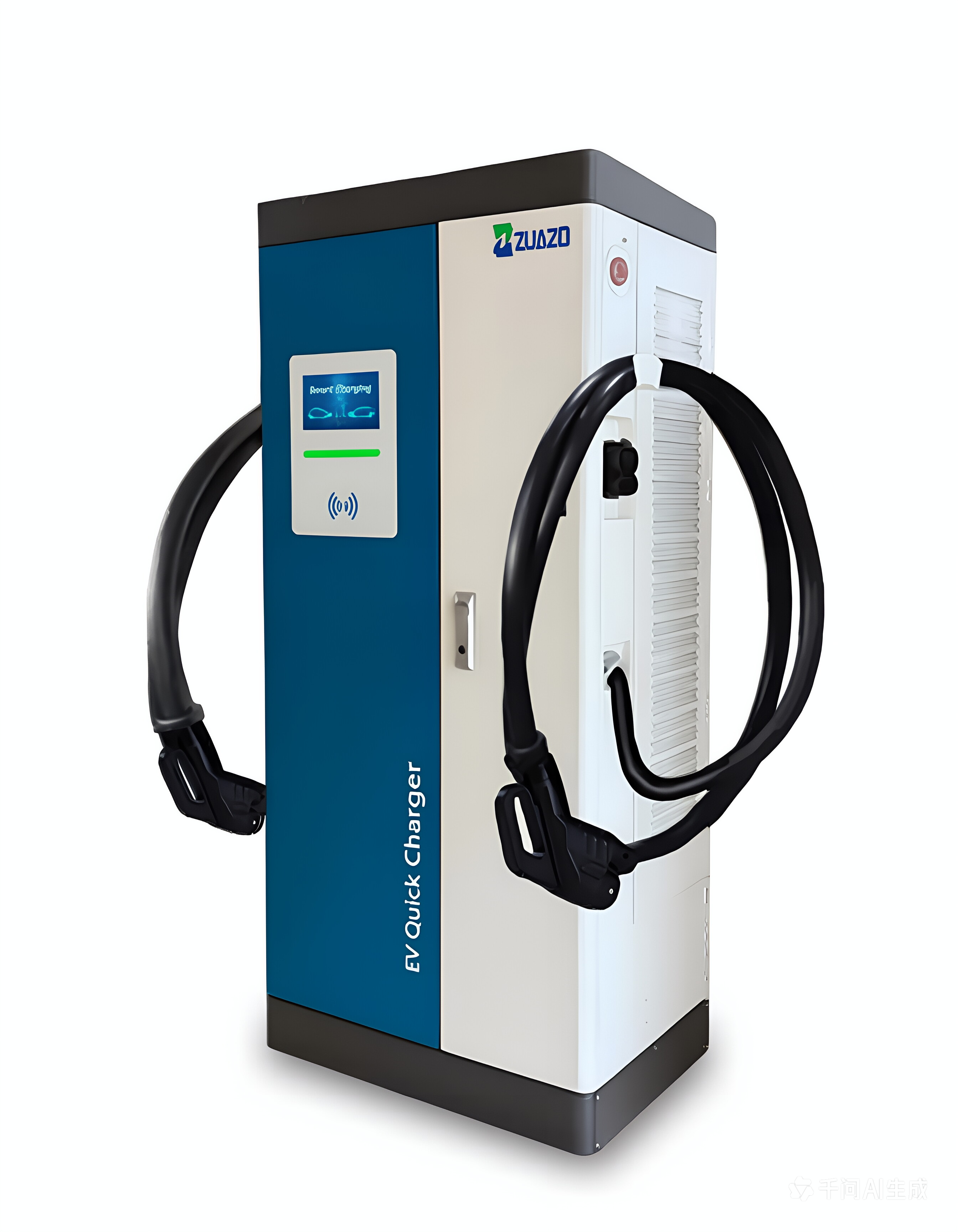

Floor-Mounted DC Charger 60-420kW
Commercial-grade floor-mounted DC fast charging stations. Dual-gun configuration, CE certified, OCPP1.6J protocol. Designed for charging stations, fleet operations, and commercial deployments.
Available Models
Floor-mounted DC fast charging stations for commercial applications

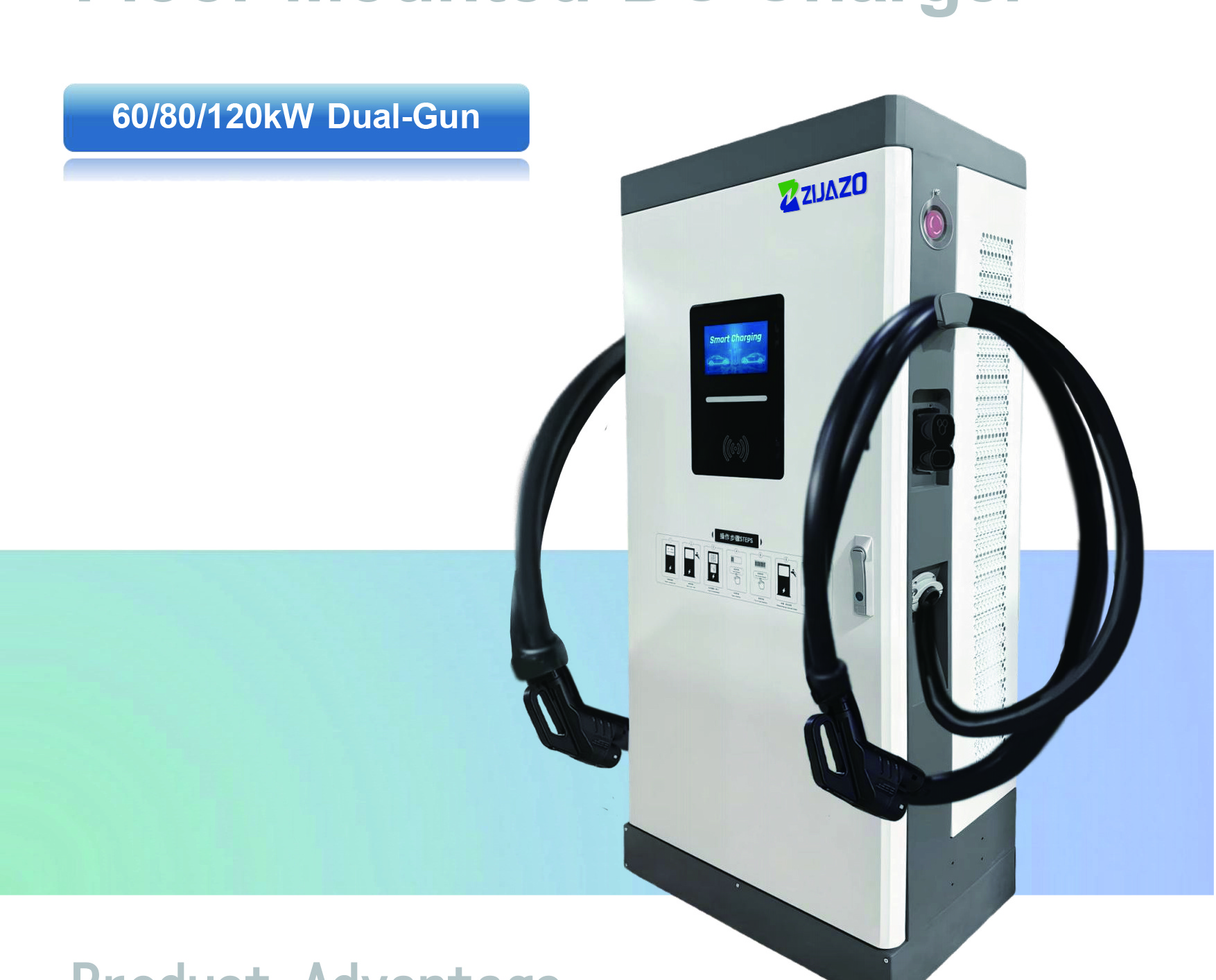

E4X2-120-F2L6
60/80/120kW Dual-Gun
- 1595×682×440mm
- 380VAC±20%, 100/128/200A
- RFID / APP / Plug & Charge
- Three-chamber Design
- Detachable Charging Cable
- OCPP1.6J + Bluetooth
- Customizable Screen Language
E4Y1-180-F2L6
120/160/180/240kW Dual-Gun
- 1595×682×440mm
- 380VAC±20%, 200/256/300/384A
- RFID / APP / Plug & Charge
- OCPP + Ethernet + WiFi
- EC Fan Cooling
- CE Certified
- Plus: Solar + POS + Ad Screen

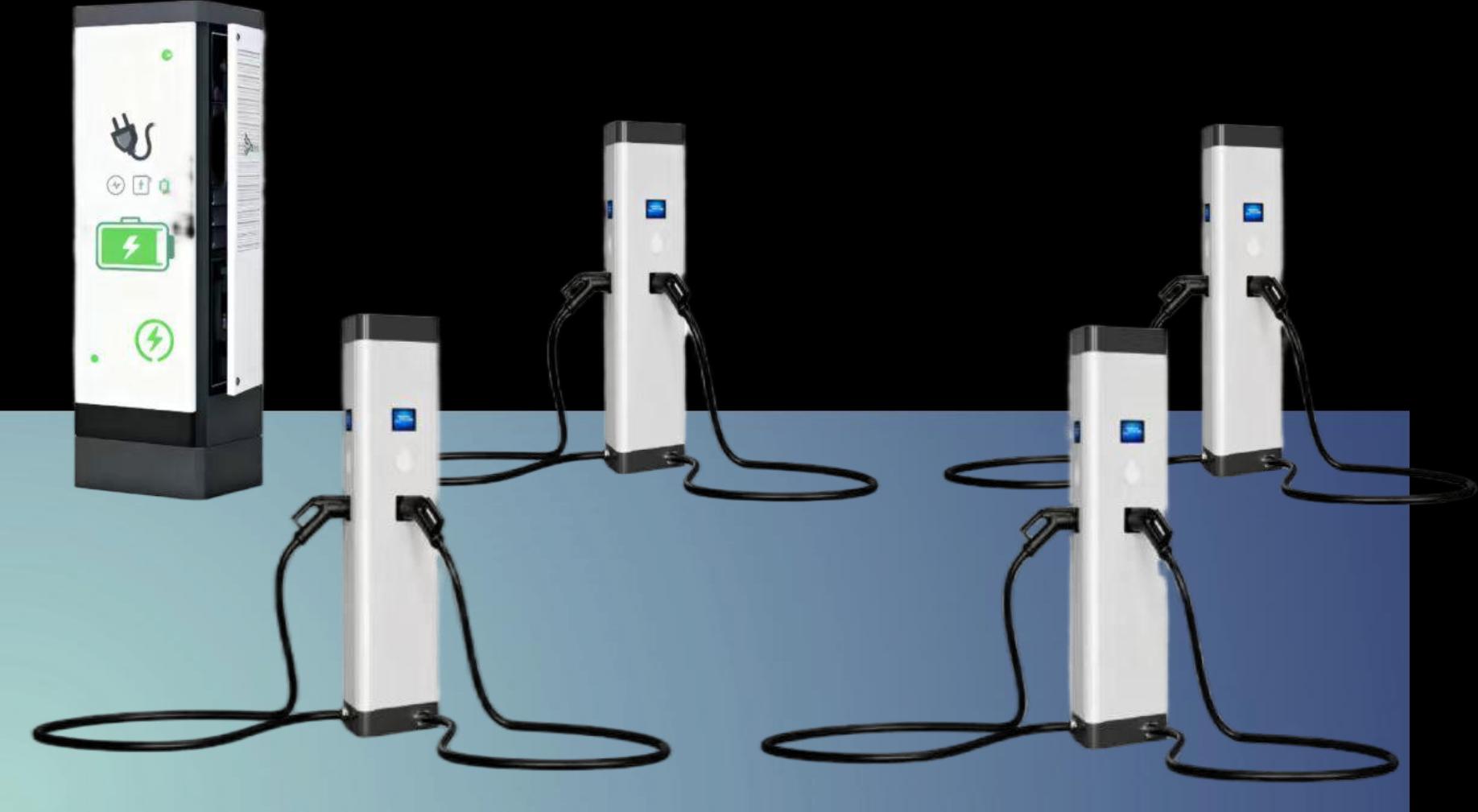

FT-WEF04-240S
420kW 1-to-4 Modular Split Cabinet
Ultra-high-power commercial charging solution for charging station construction and intelligent fleet management.
- 1500×900×1800mm
- 380VAC±20%, 670A Max
- RFID / APP / Plug & Charge
- Charging Station Construction
- Intelligent Management
- Bluetooth Connected
- 6×GBT + 6×CCS2 Guns
Power Specs
- Total Power 420kW
- Configuration 1-to-4 Split
- Voltage 380VAC±20%
- Max Current 670A
Features
- Operation Commercial Solution
- Management Intelligent
- Guns 12 (6 GBT + 6 CCS2)
- Application Charging Station
Technical Specifications
Common Specifications
| Operating Altitude | ?000m |
| Operating Temperature | -30°C ~ +50°C |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Protection Level | IP54 |
| Cable Length | 5 meters |
| Executive Standards | GBT / CCS1 / CCS2 / Mixed Gun |
| Charging Method | RFID / APP / Plug & Charge |
| Communication | OCPP1.6J, Bluetooth, Ethernet, WiFi |
Protection Functions
Overvoltage
Undervoltage
Overcurrent
Leakage
Grounding
Over-temperature
Surge Protection
Insulation
Door Access
Smoke Detection
Water Immersion
Tilt Detection
